TYPE LS TC ARMORED DRILLING RIG & MARINE POWER/DISTRIBUTION CABLE 600/1kV

Name: TYPE LS TC ARMORED DRILLING RIG & MARINE POWER/DISTRIBUTION CABLE 600/1kV
Brand: Nassau National Cable
SKU: type-ls-tc-armored-drilling-rig-marine-power-distribution-cable-600-1kv
Availability: InStock
Rating: 4.93 (7873 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Select a Gauge

TYPE LS TC ARMORED DRILLING RIG & MARINE POWER/DISTRIBUTION CABLE 600/1kV

Where are we? 4 Continents 8 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Name	Length	Price (Per FT.)	Action
Product Name 1 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 1.5 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 2.5 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 4 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 6 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 10 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 16 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 25 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 35 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 50 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 70 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 95 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 120 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 150 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 185 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 240 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 300 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 400 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 500 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action
Product Name 630 mm² Type LS Tinned Copper Armored Drilling Rig & Marine Power/Distribution Cable 600/1kV	Length /FT	Price (Per FT.) Call 516-482-6313 for pricingOut Of Stock Min: 1 FT Max: 1000000 FT	Action

Product Information

Specification

Application:

• DRILMAR LS cables are used for the distribution of power in circuits rated for 600/1000 volts.
• Typical applications include: D/C motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Also Known As:

Offshore drilling cable, Marine power distribution cable 600/1kV, LSZH marine cable, Unarmored power cable, Drilling rig cable, LS armored cable , Marine and rig power cable.

Standards:

• IEC 60092-350
• General construction and test methods of power, control and instrumentation cables for shipboard and offshore applications.
• IEC 60092-351
• Insulating materials for shipboard and offshore units, power, control, instrumentation, telecommunication and data cables.
• IEC 60092-353
• Power cables for rated voltages 1kV and 3 kV.
• IEC 60092-359
• Sheathing materials for shipboard power and telecommunication cables.
• IEC 60092-352
• Electrical installations in ships - Part 352: Choice and installation of electrical cables.
• IEEE 45 - 2002
• Recommended Practice for Electrical Installations on Shipboard Cable, as noted in Clause 23.3 for products manufactured per IEC 60092-350 series.

Approvals:

• Intertek, as Type HF XLPE / SHF1.
• ABS, American Bureau of Shipping.
• LRS, Lloyd’s Register of Shipping.
• DNV, Det Norske Veritas

Features:

• Enginnered for easiest installation.
• Maximum conductor operating temperature:
• 90°C as per IEC.
• Drilmar HF XLPE Insulation:
• Low Smoke and Halogen Free XLPE meeting IEC 60092-351.
• Rated at90°C.
• SHF1 Jacket:
• Low Smoke and Halogen Free Polyolefin metting IEC 60092-359.
• Completed cable offers superior flame resistance meeting:
• IEC 60332-1 and IEC 60332-3- 22 Category A.
• Low Smake as per IEC 61034-2.
• Halogen Free as per IEC 60754-1.

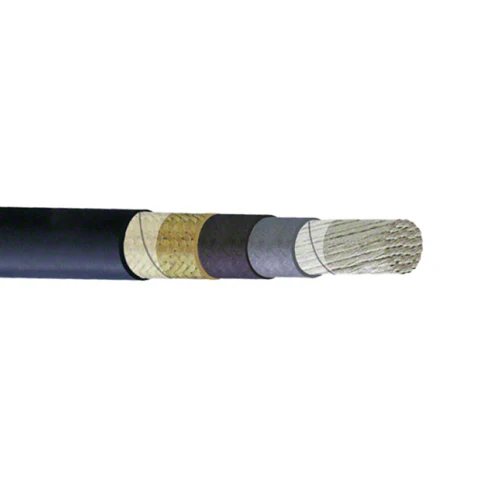

Construction:

• Conductor: Soft annealed flexible Tin Coated Copper, Class 5 as per |EC 60228. Sizes: 1 mm? up to 630 mm2
• Separator Tape: Suitable tape as required.
• Insulation: Low Smaoke Halogen Free flame retardant Crosslined Polyethylene (HF XLPE.).
• Jacket (optional): Black Low Smoke Halogen Free flame retardant thermoplastic Polyolefin (SHF1).
• Armor: Tinned Copper Braid.
• Jacket (overall): Black Low Smoke Halogen Free flame retardant thermoplastic Polyolefin (SHF1).
